IBM Certification C1000-063 Practice Test Questions

Jonnie Karnath2023-07-31T08:42:06+00:00

IBM C1000-063 is an advanced-level certification exam that tests the skills and knowledge of IBM professionals in various areas. Passing this exam demonstrates a high level of proficiency in designing, implementing, and managing IBM solutions. For those looking to prepare for the IBM C1000-063 exam, Certspots offers a comprehensive C1000-063 practice test questions which are designed to simulate the actual exam, giving candidates the opportunity to test their knowledge and identify areas where they need to improve. With Certspots’ C1000-063 practice test questions, candidates can better prepare themselves and increase their chances of passing the IBM C1000-063 exam on the first try.

Page 1 of 2

1. Which default UID is defined during the installation of ITNM?

itnmadmin

itsmadmin

itmroot

smadmin

2. Which statement is true regarding adding Layer 1 connectivity information to the network topology in ITNM?

ITNM has no capability to discover Layer 1 connectivity between devices.

To add Layer 1 connectivity, the appropriate agents need to be enabled in a 'Layer 1' sub-tree in 'Full Discovery Agents' tab in 'Network Discovery Configuration' GU

To be able to add Layer 1 connectivity to the topology ITNM Transmission Edition (TE) must be purchased in addition to ITN

Layer 1 connectivity can be discovered using specialized 'EMS Discovery'. Depending on the detailed requirements a custom collector development might be needed.

3. A full discovery within domain CUSTOMER1 usually takes about 1.5 hours to complete. Currently, the discovery has already been running for 13 hours in Phase 1.

Which OQL query should be used to find agents that are still running and blocking the transition to the next discovery phase?

select m_AgentName from agents.status where m_State <> 0 AND m_State <> 4 and ( m_Name IN (( select m_Name from agents.definitions where m_Phase='1' )) );

select AgentName from agents.status where State <> 0 AND State <> 4 and ( Name IN (( select Name from agents.definitions where Phase='1' )));

select m_AgentName from disco.agents where m_State <> 0 AND m_State <> 4 and ( m_Name IN (( select m_Name from disco.agentdefinitions where m_Phase='1' )) );

select m_AgentName from agents.status where m_State <> 0 AND m_State <> 4 and ( m_Name IN (( select m_Name from agents.definitions where m_Phase='4' )) );

4. Which command will verify that Apache Storm has database access?

$NCHOME/precision/scripts/ncp_storm_validate_dbAccess.sh db

$NCHOME/precision/scripts/ncp_storm_validate.sh db

$NCHOME/precision/scripts/perl/scripts/ncp_storm_validate.p1 db

$NCHOME/precision/scripts/sh/scripts/ncp_storrn_validate.sh db

5. Using the OMNIbus WebGUI EventViewer and assuming discovery is configured to send status events, what kind of filter should be applied to the EventViewer to only see events related to the discovery status?

Create a filter that filters on OMNIbus events having field Summary set to 'Discovery status'

Create a filter that filters on OMNIbus events having field Agent set to disco_status

Create a filter for OMNIbus events with Class=8000

Create a filter that filters on OMNIbus events having field Agent set to ncp_disco

6. Which file should be edited to change the database access for ITNM GUI components?

$NCHOME/profile/etc/tnm/tnm.properties

$JAZZSMHOME/profile/etc/tnm/tnm.properties

$NMGUI_HOME/profile/etc/tnm/tnm.properties

$NMGUI_HOME/profile/etc/tnm/topoviz.properties

7. A custom discovery stitcher creates a temporary table or array called customData using the Record customData; statement. Since implementing the custom stitcher, the amount of available memory on the ITNM server decreases more than normal while discovery is running.

What is a potential problem?

The customData table was not truncated before running the new discovery

The stitcher is missing the delete (customData); statement

The stitcher is missing the empty (customData); statement

The stitcher is missing the end statement on the last line of the stitcher so the stitcher never finishes

8. Which ITNM component uses an embedded relational database?

ncp_disco

ncp_poller

ncp_store

ncp_model

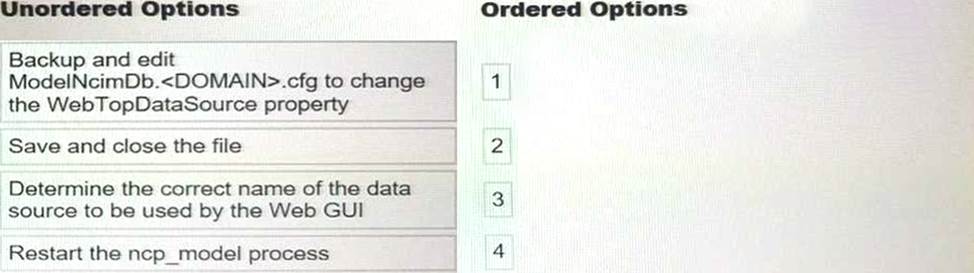

9. DRAG DROP

What is the correct sequence of steps to ensure ITNM is configured to use an existing Web GUI data source?

10. How can ITNM be configured to discover only a pre-defined set of network devices that are in a seed file?

Configure File Finder, for each Address in Scope list ensure that 'Add to Ping Seed List' option is unchecked

Disable Ping Finder, uncheck File Finder Verification, configure File Finder, and disable Feedback Control

Enable Ping Finder but remove ping seeds, uncheck File Finder Verification, configure the File Finder, and ensure that Feedback control is enabled

Configure File Finder, for each Address in Scope list ensure that 'Add to Ping Seed List' option is unchecked, and ensure that Feedback control is enabled

Page 2 of 2

11. What data is stored in the managedStatus table in the topology?

The system status for network entities

The managed status for network entities

The entity information for the configured Network View

The LingerTime for each network entity

12. What is the default CrtlServices.cfg logging level?

error

warn

info

debug

13. In a firewalled master/slave ITNM architecture, what change is needed in $NCHOME/etc/precision/ServiceData.cfg to allow the MIB browser through the firewall via TCP port 49220?

SERVICE: Config DOMAIN: domain ADDRESS: remote IP PORT: 49220 SERVERNAME: remote host DYNAMIC: NO

SERVICE: Helper DOMAIN: domain ADDRESS: remote IP PORT: 49220 SERVERNAME: remote host DYNAMIC: NO

SERVICE: Disco DOMAIN: domain ADDRESS: remote IP PORT: 49220 SERVERNAME: remote host DYNAMIC: NO

SERVICE: Mib DOMAIN: domain ADDRESS: remote IP PORT: 49220 SERVERNAME: remote host DYNAMIC: NO

14. Where can ITNM 4.2 FixPacks be downloaded?

IBM Support web site

IBM Sales

IBM FixCentral

IBM Passport Advantage

15. What is the minimum password length based on the ObjectServer property PasswordFormat 16:2:1:0:1?

16. This scenario is used on multiple questions.

A customer, ABCCONNECT, has decided to use Netcool to collect event data from network devices, discover the network, do root cause analysis, and generate tickets for helpdesk personnel to prioritize the resolution of network problems. This customer has five major locations, two of which are on the US East Coast, one in Asia, one in the United Kingdom, and one in Europe. The customer intermittently loses connections between key routers between the United States and Japan. Additionally, ABCCONNECT has smaller point-of-sale sites connected using multiprotocol label switching (MPLS) tunnels. Most network devices are from Cisco.

Effective monitoring of network conditions is critical to the operations of this company. They require full-time availability of their monitoring and event management solution.

You are implementing IBM Tivoli Network Manager so that network devices can be actively polled and root cause analysis can occur whenever there is a loss of conductivity. The customer's network is dynamic with many new devices being added daily.

An architect who is not familiar with Netcool designed an architecture and asked others to give him system requirements. This customer has some existing business relationships with a managed service provider:

The managed service provider (MSP) currently monitors customer servers and generates trouble

tickets when servers or services are no longer available. This group is located in Dallas, Texas USA.

A second MSP group located in Europe (EMEA) configures the devices on the customer's backbone network and handles network problems when they arise. This group must meet service level agreement (SLA) requirements that allow only a 5-minute period each month during which any core router in any location can be unavailable.

At each site, the customer has servers, routers, switches, wireless access points, and Distributed Alcatel-Lucent 5620 SAM elements that they need to discover and monitor.

The customer is currently using a competing product to detect network problems.

You are just now being brought into the project to begin work on deploying Netcool Operations Insight and IBM Tivoli Network Manager. You know nothing else about the customer beyond these initial facts when you are called to work on the project.

Which two options are required by the customer to determine whether the managed service provider team maintaining backbone network devices is meeting SLA criteria for device availability?

Latency statistics on ICMP graphic response to key network devices

Escalation matrix showing personnel at each site essential to resolving network outages

Percentage of bandwidth utilization for each site-to-site link

Specific reports that show network device availability

Cisco Remote Ping policy enabled between PE and CE devices in the customer network

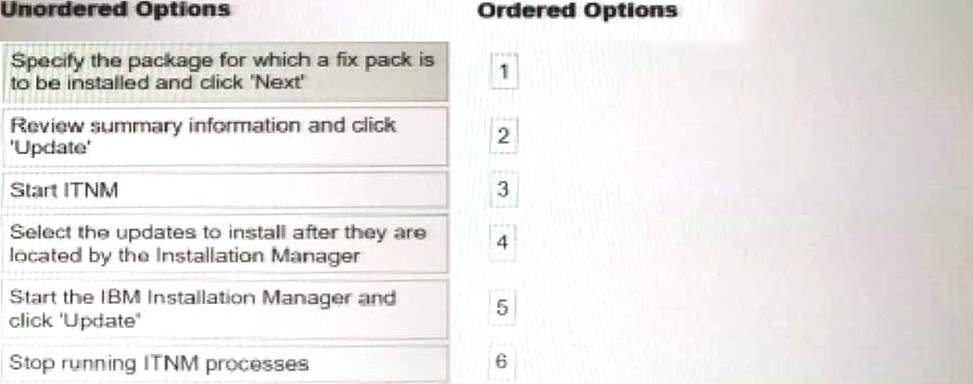

17. DRAG DROP

After configuring the repositories, what is the correct sequence of steps for installing a fix pack? Select all that apply.

18. What is the function of nco_p_ncpmonitor?

It monitors the network interfaces and forwards monitored events to the ObjectServer

It forwards events that are generated by ITNM polling to the ObjectServer

It acquires and processes network generated events and forwards these events to the ITNM Gateway

It forwards events about certain ITNM processes to Impact for notification escalation

19. Which command will verify that an ObjectServer named AGG_P is available?

nco_ping AGG_P

ping_nco AGG_P

nco_ping -name AGG_P

nco_ping -server AGG_P

20. Which two databases receive intensive queries and updates following the completion of a network discovery?

NCM1B

NCPOLLER

PARAMETERS

TCRDB

NCPOCLDATA
